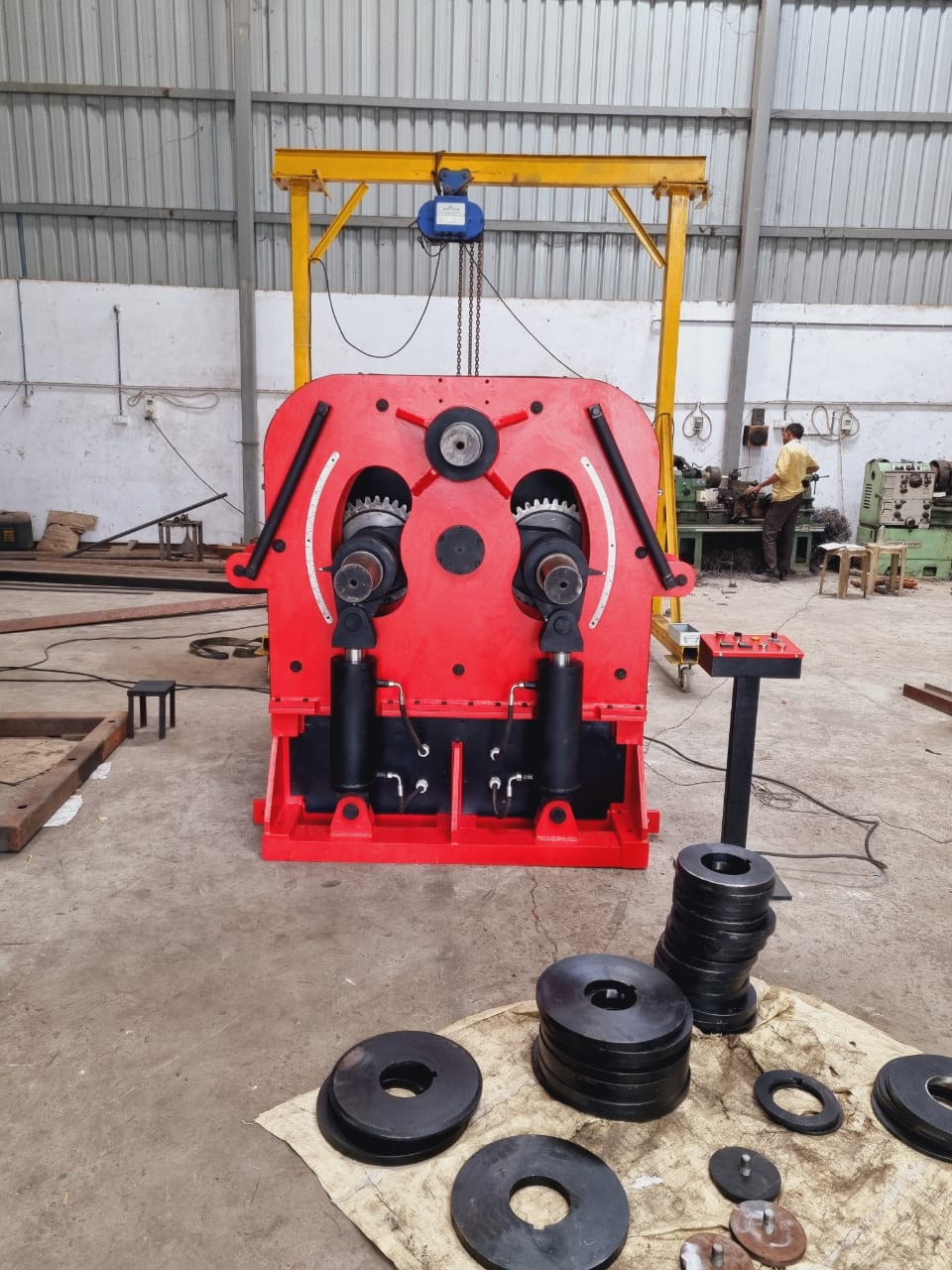

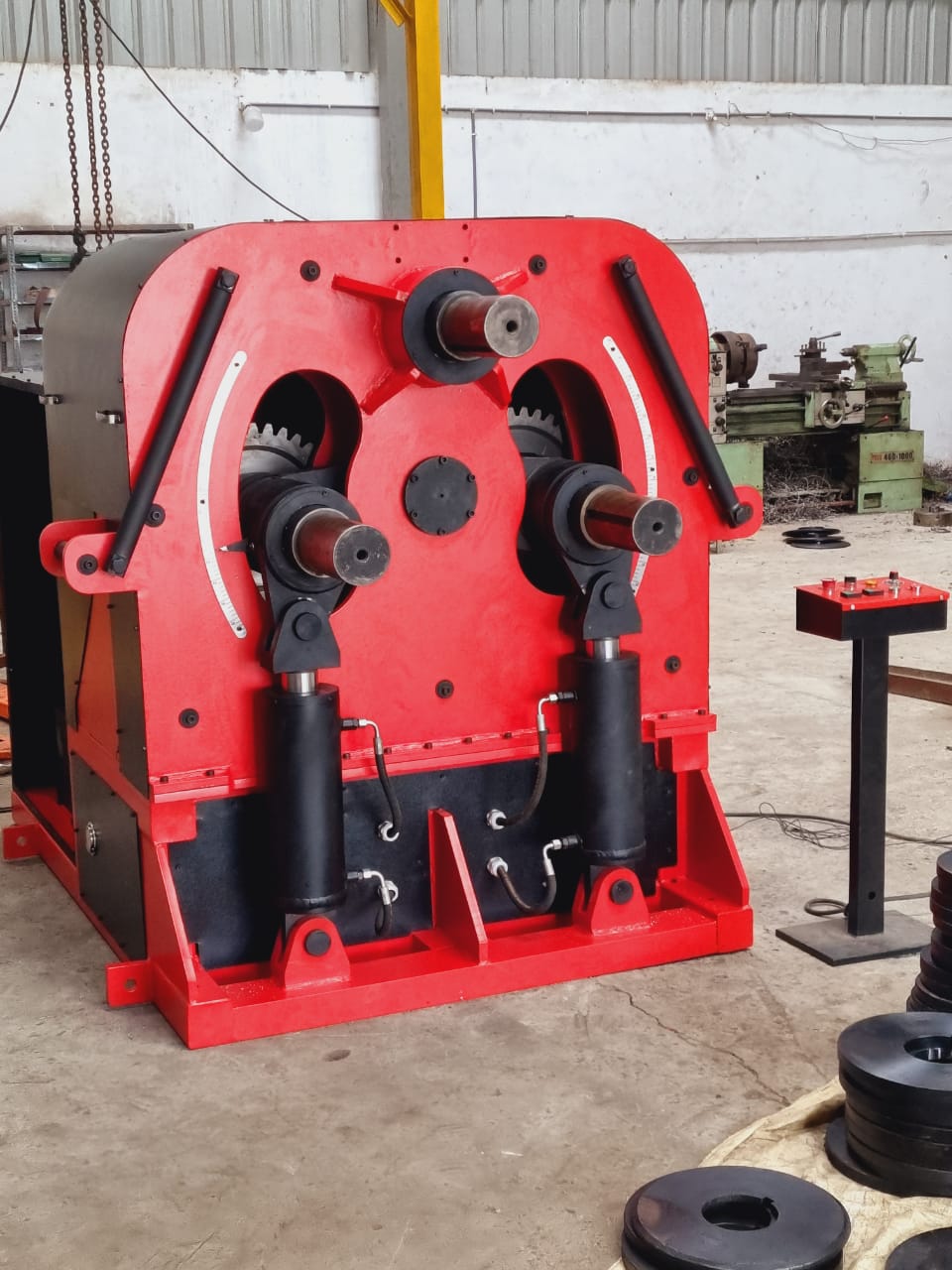

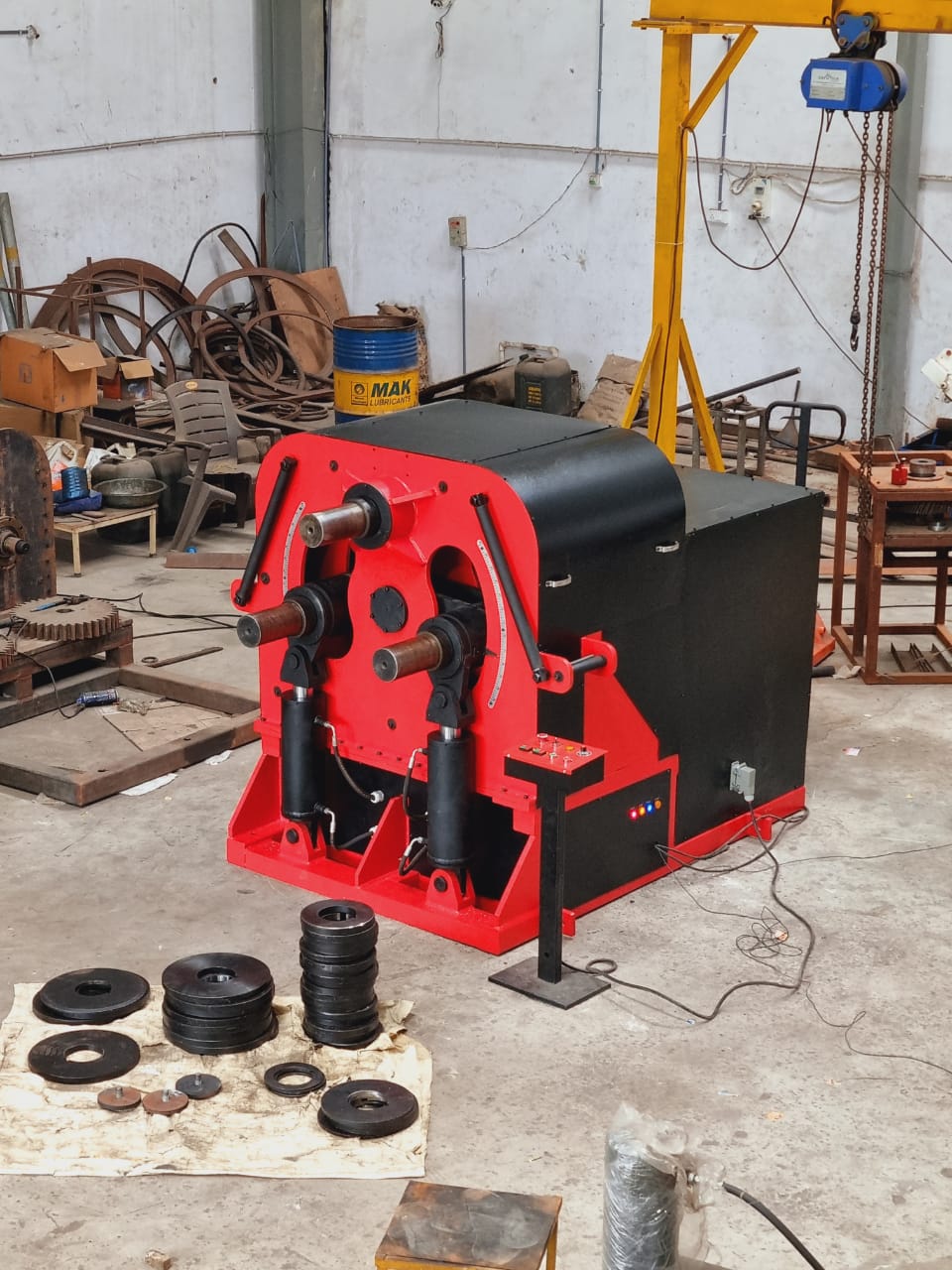

The Double Punch Section Bending Machine is engineered to handle heavy-duty bending of structural sections such as angles, channels, beams, and flats with superior accuracy. Its unique double-punch mechanism provides extra power and stability, ensuring precise shaping of even the toughest materials. This makes it ideal for industries like construction, infrastructure, and heavy fabrication where strong and consistent bends are essential.
At Ganesha MechTech, our Double Punch Section Bending Machines are built with rugged frames, advanced hydraulic systems, and operator-friendly controls for maximum efficiency. With their ability to perform complex bends while minimizing material distortion, these machines deliver reliability, durability, and performance that meet the evolving demands of modern metal fabrication.
A Section Bending Machine, also known as a Profile Bending Machine or Angle Roll, is used to bend various structural steel sections such as angles, channels, beams, tees, pipes, tubes, and flat bars into circular, curved, or spiral shapes. Unlike plate rolling machines that are designed for flat sheets, section bending machines are specialized for structural profiles and hollow sections.
• Heavy duty welded steel structure.
• Two Driven Rolls
• Horizontal & Vertical Working Positions
• Foot Padel With Safety Device.
• Top Roll is moved by Hydraulic Cylinder
• Suitable Dies for Angle / Channel / Profile & Section Bending.
Applications of Mechanical plate bending Machine
HVAC Duct Fabrication
Shapes 1-6mm GI/aluminum sheets into round/spiral ducts
Storage Tank Rings
Forms 3-12mm carbon steel hoops for small water/oil tanks and barrels.
Agricultural Repairs
Bends silo patches, plow blades, and irrigation pipes (4-10mm thickness).
Decorative Metalwork
Crafts handrails, sculptures, and architectural accents from copper/brass.
Electrical Enclosures
Rolls 2-8mm panels for junction boxes and control cabinets.
Furniture & Fixtures
Forms table bases, light fixtures, and display stands from thin metals.
Technical Table
| MODEL NO | HPPb-50X3 | HPPb-76X3 | HPPb-100X5 | HPPb-125X5 | HPPb-150X5 |
|---|---|---|---|---|---|
| Shaft Size | 50MM | 65MM | 75MM | 90MM | 100MM |
| Round Pipe | 50X3MM | 75X3MM | 100X5MM | 125X5MM | 150X5MM |
| SQ Pipe | 40X40X5 | 60X60-3MM | 70X70-30 | 100X100 3MM | 120X120 3MM |
| Rectangle Pipe | 50X25X3 | 80X40-3MM | 100X50-3 | 125X50X3 | 150X75X3 |
| Angle | 40X40X5 | 50X50X5 | 60X60X5 | 75X75X5 | 100X100X8 |
| Flat Bar (Vertical) | 40X10 | 50X12MM | 75X12MM | 100X12MM | 125X16MM |
| C-Channel | 75X35 | 100X50 | 150X65 | 175X75 | 200X75 |
| Round Bar | —– | —– | —– | —– | —– |
| Square Bar | —– | —– | —– | —– | —– |
| Motor | 3 HP (Hydraulic) | 5 HP (Hydraulic) | 7.5 HP (Hydraulic) | 10 HP (Hydraulic) | 15 HP (Hydraulic) |
| R.P.M | 6 | 8 | 6 | 5 | 5 |
