Ganeshamechtech – Leading Manufacturer Single Punch Section Bending of Machines

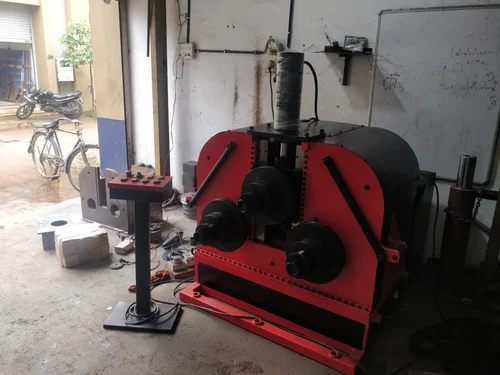

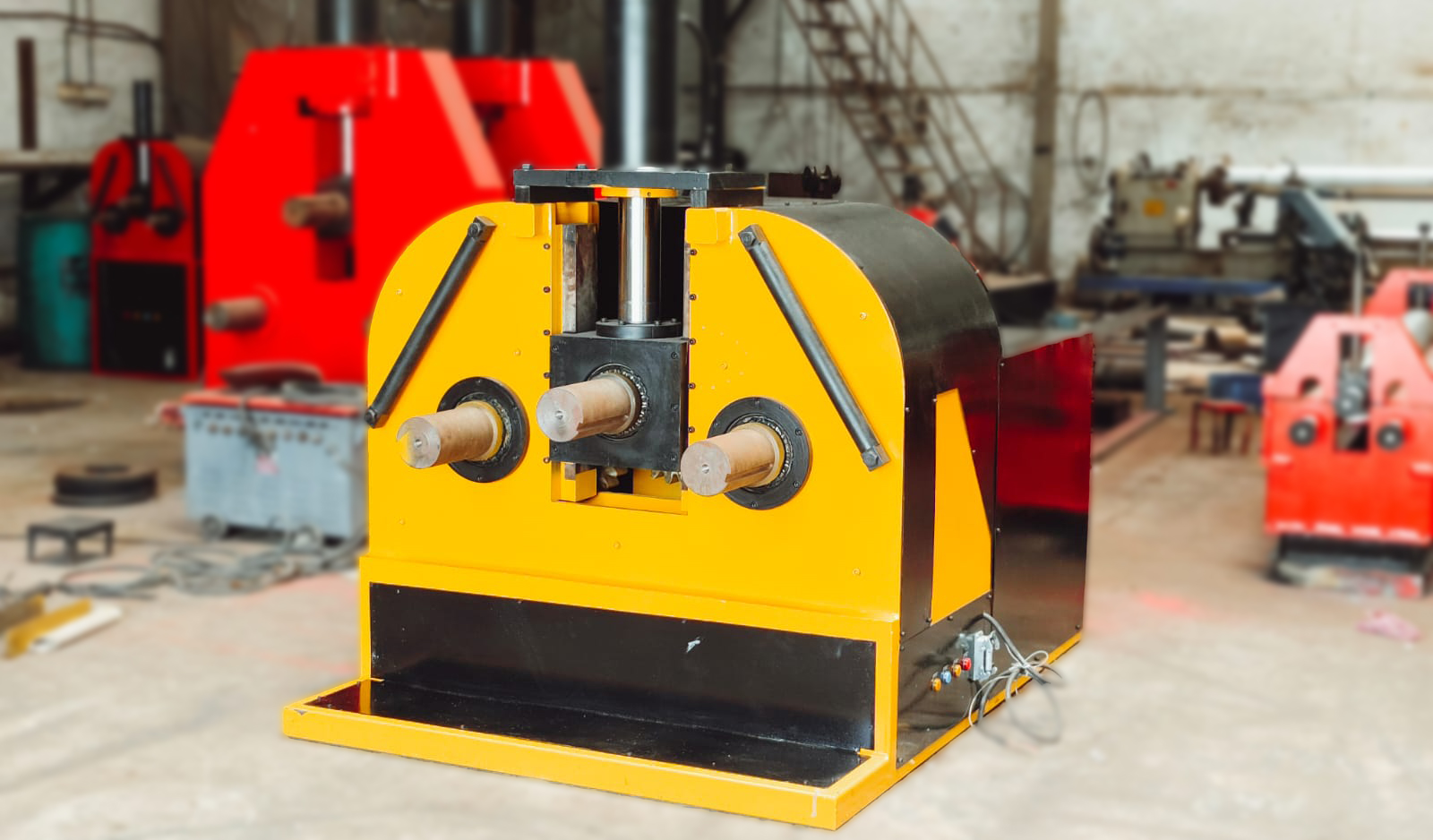

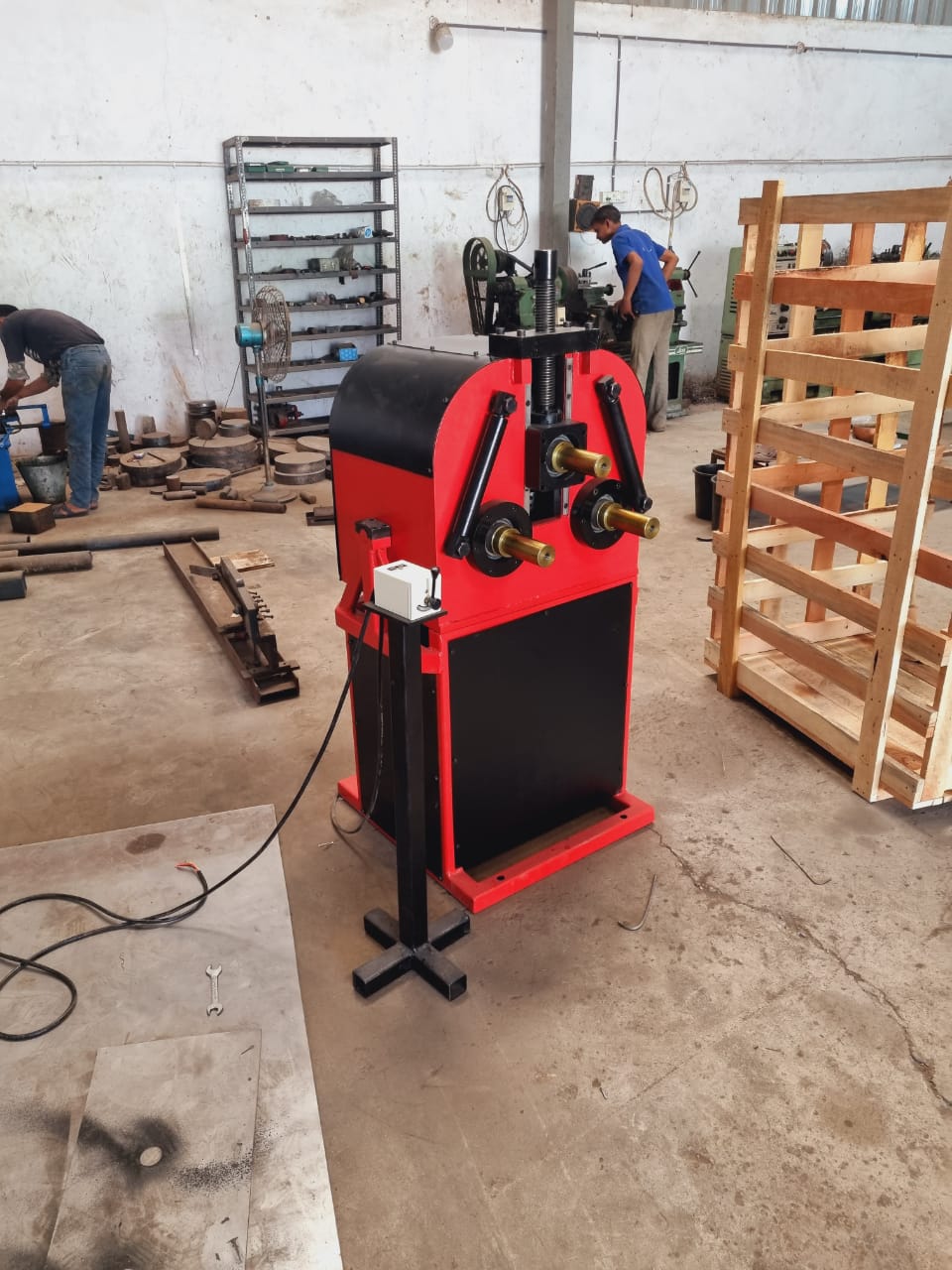

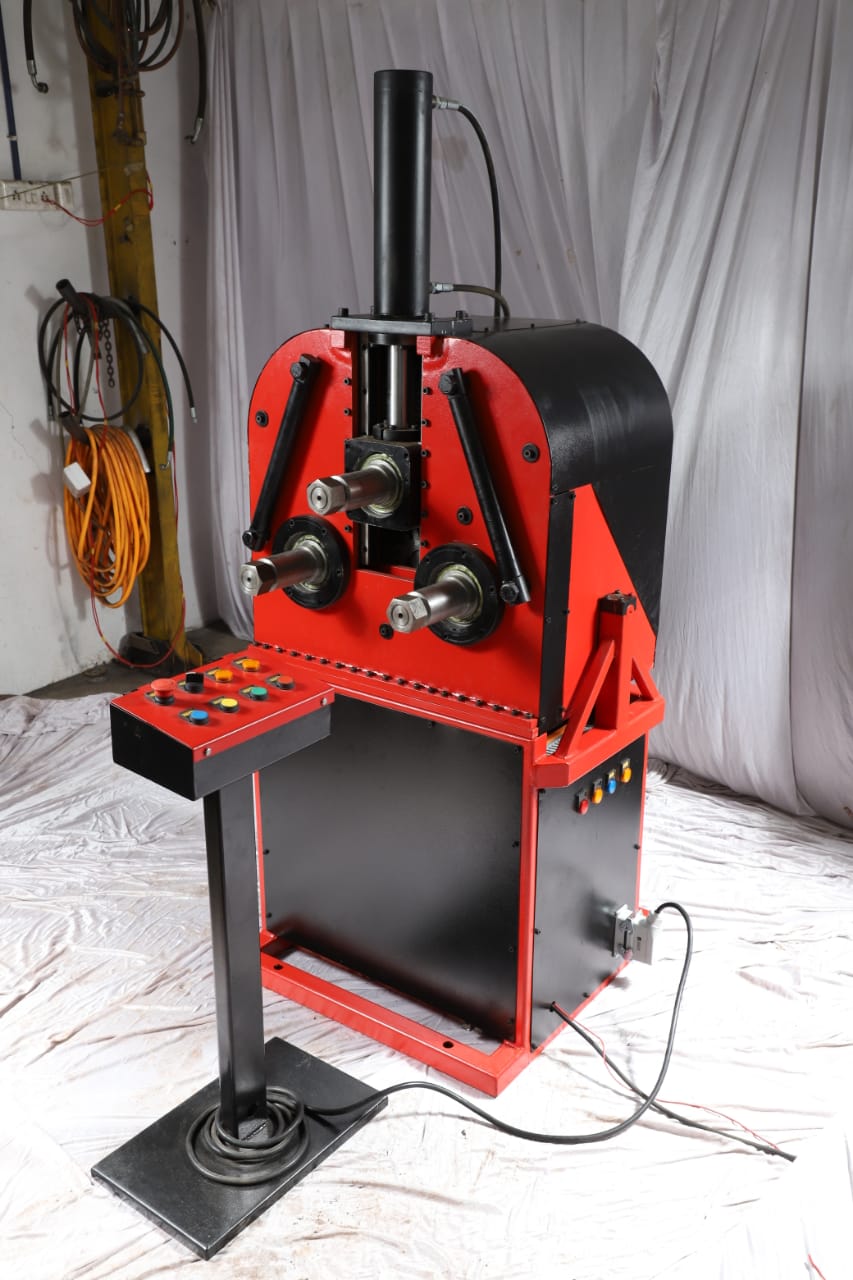

The Single Punch Section Bending Machine is designed for bending structural sections like flats, channels, angles, and beams with efficiency and accuracy. With its single-punch mechanism, it provides consistent force application, making it a reliable choice for medium-duty bending tasks in workshops and fabrication units. Its compact design and easy operation make it suitable for both small and large-scale industries.
At Ganesha MechTech, our Single Punch Section Bending Machines are built with durable components, precision engineering, and user-friendly controls. They ensure smooth operation, reduced material waste, and long-lasting performance—offering an economical yet powerful solution for versatile section bending needs.
A Section Bending Machine, also known as a Profile Bending Machine or Angle Roll, is used to bend various structural steel sections such as angles, channels, beams, tees, pipes, tubes, and flat bars into circular, curved, or spiral shapes. Unlike plate rolling machines that are designed for flat sheets, section bending machines are specialized for structural profiles and hollow sections.
• Heavy duty welded steel structure.
• Two Driven Rolls
• Horizontal & Vertical Working Positions
• Foot Padel With Safety Device.
• Top Roll is moved by Hydraulic Cylinder
• Suitable Dies for Angle / Channel / Profile & Section Bending.
Technical Table
| MODEL NO | RM-50X3 | RM-76X3 | RM-100X5 | RM-125X5 | RM-150X5 |
|---|---|---|---|---|---|
| Shaft Size | 50MM | 65MM | 75MM | 90MM | 100MM |
| Round Pipe | 50X3MM | 75X3MM | 100X5MM | 125X5MM | 150X5MM |
| SQ Pipe | 40X40X5 | 60X60-3MM | 70X70-30 | 100X100 3MM | 120X120 3MM |
| Rectangle Pipe | 50X25X3 | 80X40-3MM | 100X50-3 | 125X50X3 | 150X75X3 |
| Angle | 40X40X5 | 50X50X5 | 60X60X5 | 75X75X5 | 100X100X8 |
| Flat Bar (Vertical) | 40X10 | 50X12MM | 75X12MM | 100X12MM | 125X16MM |
| C-Channel | 75X35 | 100X50 | 150X65 | 175X75 | 200X75 |
| Round Bar | —– | —– | —– | —– | —– |
| Square Bar | —– | —– | —– | —– | —– |
| Motor | 3+1 HP (Hydraulic) | 5+1 HP (Hydraulic) | 7.5+2 HP (Hydraulic) | 10+2MM HP (Hydraulic) | 15+5MM HP (Hydraulic) |
| R.P.M | 6 | 8 | 6 | 5 | 5 |
